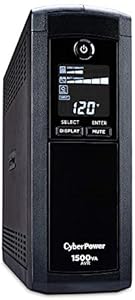

CyberPower CP1500AVRLCD Intelligent LCD UPS System
I have always been a big fan of apc products however, i decided to try the cyberpower ups over my normal apc units due to the lack of support i received from apc recently. The cyberpower has a slightly smaller profile in both length and height compared to both the apc xs 1300 and 1500 models. The display is bright and easy to read showing the user input voltage, hertz, load and battery life. All function buttons are larger and easier to press than the comparable apc brand. There is also a clearly marked mute button on the face of the cyberpower model to silence any alarms that may occur. While i sometime get power fluctuations or surge cycling from both the cyberpower and the apc models, i get far less through the cyberpower model. It can be quite annoying at night while sleeping and you hear ‘ click, click’ , ‘click, click’ in the middle of the night. I recently had a bad storm move through the area and we lost power. The cyberpower unit stayed online longer, had more of a load than my apc model, and protected my electronics as expected. The display on the cyberpower has better contrast making it easier to read from a distance.
Size:1500VA / 900W | Pattern Name:Single A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1500AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1500AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500AVRLCD comes with a three-year warranty (including coverage of batteries) Battery Backup Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown. Surge Protection Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage. Data Line Protection Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics. Line Interactive Topology Exists when a line interactive UPS has an auto transformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery. Automatic Voltage Regulation (AVR) Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations. Simulated Sine Wave Output Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output. GreenPower UPS Bypass design Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup. Multi-function LCD panel displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. Ultra quiet design minimizes noise during operation for a quieter work environment. PowerPanel personal software provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available here. Energy Star: This model is an Energy Star certified Uninterruptible Power Supply (UPS) system. Energy Star is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment. Automatic voltage regulation: Yes – single boost (10%).
From the manufacturer
Uninterruptible Power Supply System
Why Do You Need a UPS System?
Even brief power outages can result in data loss or potential hardware damage. A UPS system provides battery backup power to keep your devices running during short outages and provides enough runtime to properly shut down electronics during extended outages.
Where To Use
Desktop Computers
Ensure seamless power to your PC and make certain you have time to safely shut down your system during a longer outage.
Home Networking/VoIP
Keep your smart-home devices connected to your WIFI during power outages and brownouts.
Personal Electronics
Don’t let the game end when the power goes out. Backup battery power keeps gaming consoles, stereos, and chargers running.
Home Theaters
Protect sensitive televisions, projectors, satellites, and cable boxes from power surges and spikes.
CyberPower AVR Intelligent LCD UPS Series
CP1500AVRLCD |
CP850AVRLCD |
CP1000AVRLCD |
CP1350AVRLCD |
|
|
Battery Power
|
1500 | 850 | 1000 | 1350 |
|
Watts
|
900 | 510 | 600 | 815 |
|
Runtime (Half/Full)
|
12/3 Minutes | 11/3 Minutes | 9/2 Minutes | 14/3 Minutes |
|
Battery & Surge Protected
|
6 Outlets | 5 Outlets | 5 Outlets | 5 Outlets |
|
Surge Protected Only
|
6 Outlets | 4 Outlets | 4 Outlets | 5 Outlets |
|
AVR
|
||||
|
LCD Screen
|
||||
|
Topology
|
Line Interactive | Line Interactive | Line Interactive | Line Interactive |
|
Waveform
|
Simulated Sine Wave | Simulated Sine Wave | Simulated Sine Wave | Simulated Sine Wave |
|
Model Type
|
Mini-Tower | Mini-Tower | Mini-Tower | Mini-Tower |
|
Management Software
|
PowerPanel Personal | PowerPanel Personal | PowerPanel Personal | PowerPanel Personal |
How long will the UPS power my systems after the power goes out?
Run times vary based on the power required by connected devices. This system is estimated to run for 12 minutes at half load, 3 minutes for a full load. The LCD screen provides an estimated run time based on the required power usage during blackouts.
Can this UPS model be monitored?
Yes, the CP15000AVRLCD comes with a free download of PowerPanel Personal that provides a user-friendly dashboard interface for controlling and monitoring the UPS.
Can the batteries on this UPS be replaced?
Yes, this unit can have the batteries replaced. The replacement battery cartridge is the CyberPower RB1290X2. Please note this unit requires two batteries.
Do all of the outlets have battery backup power and surge protection?
No, not all of the outlets have battery backup power. The CP1500AVRLCD has six battery backup and surge protected outlets and six surge protected outlets.
How do I mute the alarms?
Holding the mute button for more than 3 seconds will silence the alarm. Short press the ENTER button to confirm the setting. After the setting has been confirmed, the LCD screen will stop flashing.
Features and Spesification
- Make sure this fits
by entering your model number. - 1500VA/900W Intelligent LCD Battery Backup Uninterruptible Power Supply (UPS) System
- 12 NEMA 5-15R outlets: (6) battery backup & surge protected outlets, (6) surge protected outlets safeguard desktop computers, workstations, networking devices and home entertainment equipment
- Multifunction LCD panel: Displays immediate, detailed information on battery and power conditions, including: Estimated runtime, battery capacity, load capacity, etc.
- Automatic Voltage Regulation (AVR): Corrects minor power fluctuations without switching to battery power, thereby extending the life of the battery
- 3-year warranty – Including the batteries, $500,000 connected equipment guarantee and free PowerPanel personal edition management software (Download)
